Technical Data. Line overview and stage specifications for Spunlace lines.

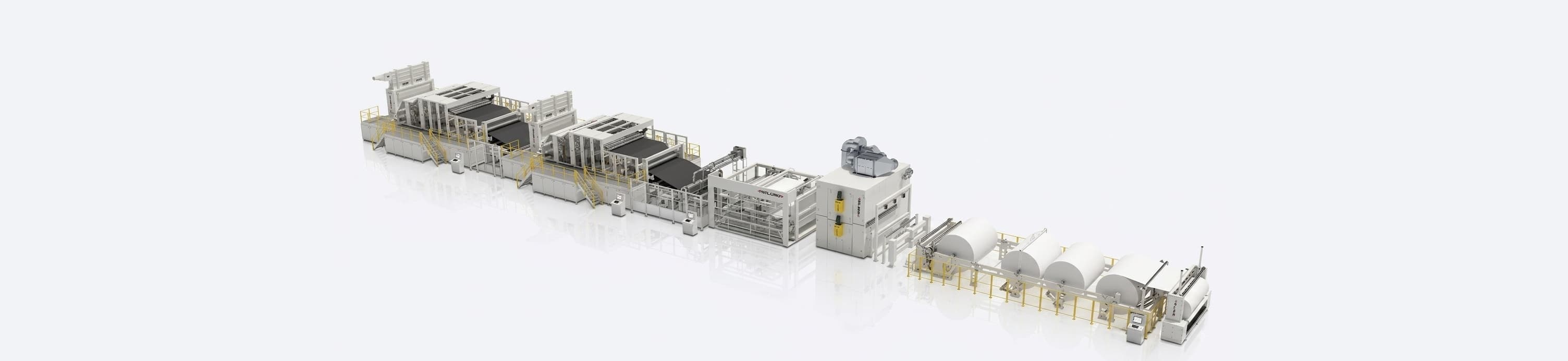

Line overview

Capacity, energy, fibers, and compliance for the complete production line.

Technology
Parallel and cross-lapped spunlace; flushable and wood-pulp composite options
Useful working width
1.000 – 4.500 mm (typical configurations 1.800 – 4.500 mm)
Weight range
30 – 250 g/m² (parallel / cross-lapped depending on layout)
Production speed
up to 280 m/min (line); winding typically 120 – 250 m/min by product
Possible fibers
Viscose, PET, PP, cotton, PLA, wood pulp composites, bicomponent
Energy & media sources
Electric; high-pressure process water; natural gas or steam for drying
Safety standards
CE / Machinery Directive integration for EU projects

Figures reflect published Changshu Feilong configuration ranges. Exact capacity, energy use, and stage selection depend on product mix and line layout.

By stage. Machine data for each process section.

Fiber preparation

Opening, blending, and feeding matched to fiber type, blend ratio, and line throughput.

  • Fiber typesNatural, synthetic, regenerated, recycled
  • Opening / blendingBale opener and multi-component blending
  • Carding feedUp to 2.500 kg/h carding capacity (line-dependent)
  • ConditioningDust extraction and controlled fiber transport

Web formation

Carding with parallel (randomized) or cross-lapped layouts ahead of hydroentanglement.

  • LayoutsHigh-speed parallel; crossed / cross-lapped
  • Working width2.500 – 4.500 mm (typical line widths)
  • Parallel line≈ 30 – 95 g/m²; winding up to ~200 m/min; MD/CD ≈ 3–4 : 1
  • Cross-lapped line≈ 30 – 150 g/m²; winding up to ~120 m/min; MD/CD ≈ 1–1,5 : 1

Hydroentanglement

High-pressure water-jet bonding with stainless injectors and recirculating filtration.

  • Working width1.000 – 4.000 mm (unit); lines up to 4.500 mm
  • Jet pressureup to 250 bar
  • Design speed100 – 350 m/min (spunlace unit window)
  • Injector bodySUS304 forged hydroentanglement heads
  • FiltrationMulti-layer sintered mesh, ~40 μm precision

Drying

Honeycomb double-drum or multi-drum hot-air dryers for spunlace and needled webs.

  • Dryer typesHoneycomb double-drum, multi-drum
  • Working width2.000 – 4.000 mm
  • Line speed100 – 350 m/min
  • Heating mediaNatural gas (direct fire) or steam
  • Heat recoveryIntegrated recovery options

Slitting and winding

Precision cutting and roll build with controlled tension for clean edges and stable geometry.

  • Cut methodsRazor, score, crush-cut
  • Drive typesSurface, center, combination
  • Winding speedMatched to upstream process window

Packaging

Automatic packaging for jumbo and slitted rolls — wrap, band, label, and handle for storage and dispatch.

  • Roll formatsJumbo / mother rolls and slitted daughter rolls
  • ProtectionFilm wrap, banding, labeling integration
  • TraceabilityBatch and roll ID marking
